Showing 1–12 of 23 results
-

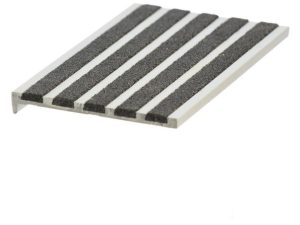

SKU: GF-RC21
Material: Black hard-wearing carborundum inserts
Outside Dimension: 10mm high x 75mm wide
Colours Available: Black or yellow inserts
Compliance
The Architect Grip Range exceeds the following requirements:
AS4586:2013 – Slip resistance classification of new pedestrian surface materials
HB 198:2014 – Guide to the specification and testing of slip resistance of pedestrian surfaces
NCC – Volume 1 clause D2.13 section (v) part (B)
NCC- Volume 2 clause 3.9.1.4 section (a) part (ii)
The Architect Grip Range of nosing’s have been tested in accordance with AS4586:2013 Appendix A
Slip Resistance
The Architect Grip Range of stair nosing has a mean wet slip resistance value (SRV) of 85 and a slip resistance classification of P5.
-

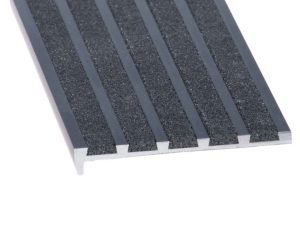

SKU: GF-RC21BLK
Material: Black hard-wearing carborundum inserts
Outside Dimension: 10mm high x 75mm wide
Colours Available: Black
Compliance
The Architect Grip Range exceeds the following requirements:
AS4586:2013 – Slip resistance classification of new pedestrian surface materials
HB 198:2014 – Guide to the specification and testing of slip resistance of pedestrian surfaces
NCC – Volume 1 clause D2.13 section (v) part (B)
NCC- Volume 2 clause 3.9.1.4 section (a) part (ii)
AS1428.1:2009 Part 1
The Architect Grip Range of nosing’s have been tested in accordance with AS4586:2013 Appendix A
Slip Resistance
The Architect Grip Range of stair nosing has a mean wet slip resistance value (SRV) of 85 and a slip resistance classification of P5.
-

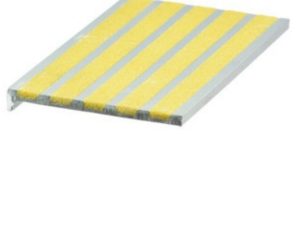

SKU: GF-RC21YEL
Material: Yellow hard-wearing carborundum inserts
Outside Dimension: 10mm high x 75mm wide
Colours Available: Silver with black or yellow inserts
Compliance
The Architect Grip Range exceeds the following requirements:
AS4586:2013 – Slip resistance classification of new pedestrian surface materials
HB 198:2014 – Guide to the specification and testing of slip resistance of pedestrian surfaces
NCC – Volume 1 clause D2.13 section (v) part (B)
NCC- Volume 2 clause 3.9.1.4 section (a) part (ii)
The Architect Grip Range of nosing’s have been tested in accordance with AS4586:2013 Appendix A
Slip Resistance
The Architect Grip Range of stair nosing has a mean wet slip resistance value (SRV) of 85 and a slip resistance classification of P5.
-

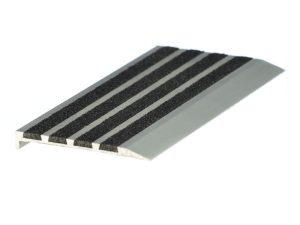

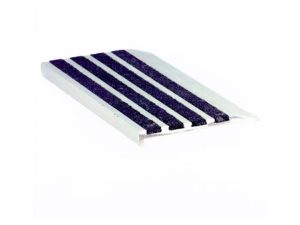

SKU: GF-RST10
Material: 10 um anodised aluminium – 3mm thickness and solid heavy-duty fibreglass carborundum insert
Dimensions: 10mm x 74mm x 3620mm (lengths or cut to size)
Insert Dimensions: 4 x 10mm hard-wearing carborundum inserts
Colours Available: Silver with black or yellow inserts
Compliance
AS4586:2013 – Slip resistance classification of new pedestrian surface materials
HB 198:2014 – Guide to the specification and testing of slip resistance of pedestrian surfaces
NCC – Volume 1 clause D2.13 section (v) part (B)
NCC- Volume 2 clause 3.9.1.4 section (a) part (ii)
The Architect Grip Range of nosing’s have been tested in accordance with AS4586:2013 Appendix A
Slip Resistance
The carborundum inserts have a mean wet slip resistance value (SRV) of 85 and a slip resistance classification of P5.
Luminance Contrast
As part of the NCC volume 1 stair nosing’s are required to have a 30% luminance contrast between the surface and the stair
nosing insert. The light reflectance value (LRV) of the Architect Grip Range have been tested in accordance with
AS1428.1-2009 Appendix B and the results are as follows:
Black insert
Dry Conditions: 38.58
Wet Conditions: 37.36
Yellow insert
Dry Conditions: 48.39
Wet Conditions: 47.15
-

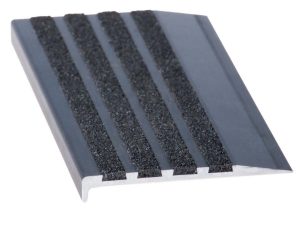

SKU: GF-RST10-BLK
Material: 5mm black anodised aluminium and 4 x 10mm hard-wearing black carborundum inserts
Dimensions: 10mm x 74mm x 3620mm (lengths or cut to size)
Insert Dimensions: 5mm x 72mm
Colours Available: Black
Compliance
AS4586:2013 – Slip resistance classification of new pedestrian surface materials
HB 198:2014 – Guide to the specification and testing of slip resistance of pedestrian surfaces
NCC – Volume 1 clause D2.13 section (v) part (B)
NCC- Volume 2 clause 3.9.1.4 section (a) part (ii)
AS1428.1:2009 Part 1
The Architect Grip Range of nosing’s have been tested in accordance with AS4586:2013 Appendix A.
Slip Resistance
The carborundum inserts have a mean wet slip resistance value (SRV) of 85 and a slip resistance classification of P5.
Luminance Contrast
As part of the NCC volume 1 stair nosing’s are required to have a 30% luminance contrast between the surface and the stair
nosing insert. The light reflectance value (LRV) of the Architect Grip Range have been tested in accordance with
AS1428.1-2009 Appendix B and the results are as follows:
Black
Dry Conditions: 4.45
Wet Conditions: 3.08
-

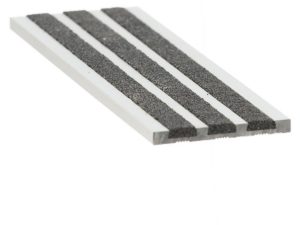

SKU: GF-RC
Material: Aluminium with Black hard-wearing carborundum inserts
Outside Dimension: 5mm high x 50mm wide
Colours Available: Silver with black inlay
Compliance
The width being 50mm complies to the AS/NZ Standards 1428.1 & access mobility Part 1.
Ultimate In Anti-Slip Safety
The carborundum inserts provides the highest possible safety rating and is particularly suitable for external wet areas. It exceeds the requirements of the Australian/New Zealand Standards for anti-slip AS4586:2004.
Slip resistance classification of new pedestrian surface materials and the National Construction Code.
-

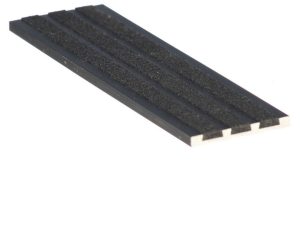

SKU: GF-RC20BLK
Material: 5mm thick aluminium with 3 x 10mm black hard-wearing carborundum inserts
Outside Dimension: 5mm high x 50mm wide
Colours Available: Black
Compliance
The Architect Grip Range exceeds the following requirements:
AS4586:2013 – Slip resistance classification of new pedestrian surface materials.
HB 198:2014 – Guide to the specification and testing of slip resistance of pedestrian surfaces
NCC – Volume 1 clause D2.13 section (v) part (B)
NCC- Volume 2 clause 3.9.1.4 section (a) part (ii)
AS1428.1:2009 Part 1
The Architect Grip Range of nosing’s have been tested in accordance with AS4586:2013 Appendix A
-

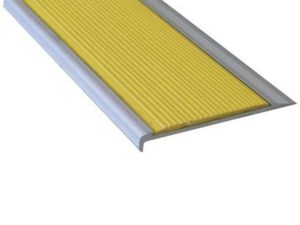

SKU: GF-RCF10
Material: Aluminium and hard wearing PVC rubber insert
Customisable: 10mm x 71mm x 3620mm (lengths or cut to size)
Colours Available: Silver with black, yellow or grey insert
Details: 8mm diameter countersunk holes, provided at 280mm centres
Compliance
Industry Standards: Our aluminium stair nosing meets or exceeds the requirements of AS4586:2013 and The National Construction Code
Accessibility: AS1428.1:2021 for access and mobility design
Slip Resistance: Achieved a slip resistance classification of P5
Luminance Contrast: The light reflectance value (LRV) of the rubber inserts have been tested in accordance with AS1428.1-2009 Appendix B
-

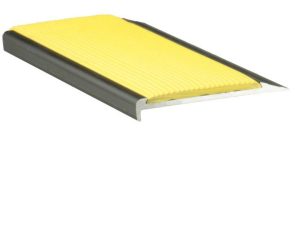

SKU: GF-RCF10BLK
Material: Black powder-coated Aluminium and hard wearing 50mm PVC rubber insert
Customisable: 10mm x 71mm x 3620mm (lengths or cut to size)
Colours Available: Black with black, yellow or grey insert
Details: 8mm diameter countersunk holes, provided at 280mm centres
Compliance
Industry Standards: Our aluminium stair nosing meets or exceeds the requirements of AS4586:2013 and The National Construction Code
Accessibility: AS1428.1:2021 for access and mobility design
Slip Resistance: Achieved a slip resistance classification of P5
Luminance Contrast: The light reflectance value (LRV) of the PVC rubber inserts have been tested in accordance with AS1428.1-2009 Appendix B
-

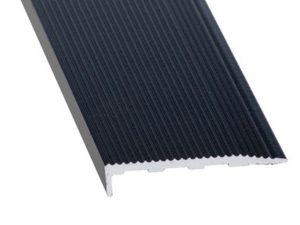

SKU: GF-RST50 BLK
Material: Black powder coated aluminium
Dimensions: 10mm x 50mm x 3620mm (lengths or cut to size)
Colours Available: Black or silver
Compliance
Industry Standards: Our aluminium stair nosing meets or exceeds the requirements of AS4586:2013 and The National Construction Code
Accessibility: AS1428.1:2009 for access and mobility design
Slip Resistance
Black: P3
-

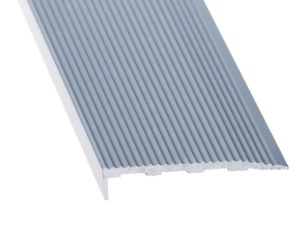

SKU: GF-RST50
Material: Aluminium
Dimensions: 10mm x 50mm x 3620mm (lengths or cut to size)
Colours Available: Silver or black
Compliance
Industry Standards: Our aluminium stair nosing meets or exceeds the requirements of AS4586:2013 and The National Construction Code
Accessibility: AS1428.1:2009 for access and mobility design
Slip Resistance
Silver: P4
-

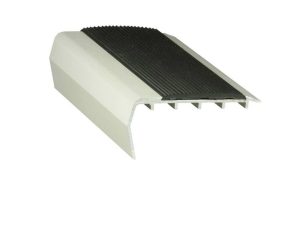

SKU: GF-RNAC for carpet
Material: 10 um anodised aluminium with a 3mm thickness, ensuring both durability and compliance.
Luminous glow-in-the-dark, or serrated aluminium insert for an additional charge.
Customisable: 37mm x 75mm x 3620mm (lengths or cut to size)
Colours Available: Black, yellow and grey
Details: 8mm diameter countersunk holes, provided at 280mm centres.
Compliance and Anti-Slip Safety
Industry Standards: Our aluminium stair nosing meets or exceeds the requirements of AS4586:2013
Slip Resistance: Achieved a slip resistance classification of P5
