Showing 13–23 of 23 results
-

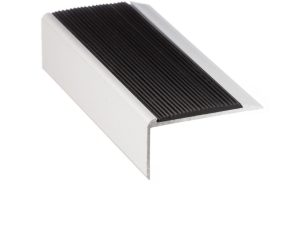

SKU: GF-RCF
Material: 3mm thick anodised Aluminium and 50mm PVC rubber insert, designed for optimal slip resistance, particularly in wet conditions.
Customisable: 37mm x 71mm x 3620mm (lengths or cut to size)
Colours Available: Silver with black, yellow or grey insert. Upgrade to a 50mm carborundum, luminous glow-in-the-dark, or serrated aluminium insert for an additional charge.
Details: 8mm diameter countersunk holes, provided at 280mm centres
Compliance
Industry Standards: Our aluminium stair nosing meets or exceeds the requirements of AS4586:2013
Slip Resistance: Achieved a slip resistance classification of P5
-

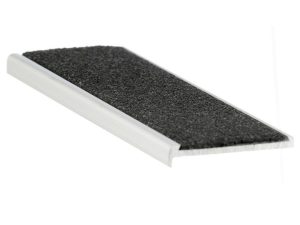

SKU: GF-RNR10C
Material: 10 um anodised aluminium – 3mm thickness and solid heavy-duty fibreglass carborundum insert
Outside Dimensions: 10mm x 59mm x 3620mm (lengths or cut to size)
Colours Available: Black
Details: 8mm diameter countersunk holes, provided at 280mm centres
Compliance
AS4586:2013 – Slip resistance classification of new pedestrian surface materials
HB 198:2014 – Guide to the specification and testing of slip resistance of pedestrian surfaces
NCC – Volume 1 clause D2.13 section (v) part (B)
NCC- Volume 2 clause 3.9.1.4 section (a) part (ii)
AS1428.1:2009 Part 1
Slip Resistance
The carborundum inserts have a mean wet slip resistance value (SRV) of 71 and a slip resistance classification of P5.
-

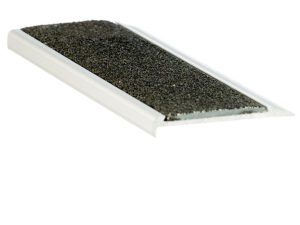

SKU: GF-RCF10B
Material: 10um anodised aluminium with a 3mm thickness and 50mm heavy duty carborundum insert
Customisable: 10mm x 71mm x 3620mm (lengths or cut to size)
Colours Available: Silver with black, yellow or grey insert
Details: 8mm diameter countersunk holes, provided at 280mm centres
Compliance
Industry Standards: Our aluminium stair nosing meets or exceeds the requirements of AS4586:2013 and The National Construction Code
Accessibility: AS1428.1:2009 for access and mobility design
Slip Resistance: Achieved a slip resistance classification of P5.
-
PRODUCT INFORMATION

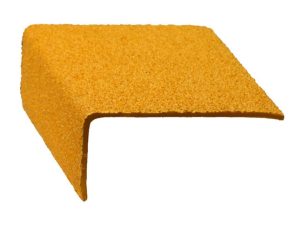

• SKU: GF-RMN3575
• Material: 1.6mm Galvanised Metal
• Customisable: 35mm x 75mm x 2400mm (lengths or cut to size)
• Colours available: Yellow
Slip Resistance
All stair nosing’s have been tested in accordance with AS4586:2013 Appendix A
Test Method: Wet Pendulum
• Slip Resistance Value: 76
• Slip Resistance Classification: P5
Luminous Contrast
Luminous contrast testing was carried out in accordance with AS 1428.1-2009 Appendix B
Yellow
• LRV Dry: 39.53
• LRV: Wet: 35.04
-
PRODUCT INFORMATION

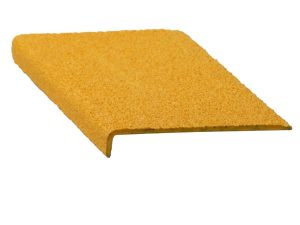

• SKU: GF-RMN1075
• Material: 1.6mm Galvanised Metal
• Customisable: 10mm x 75mm x 2400mm (lengths or cut to size)
• Colours available: Yellow
Compliance
• National Construction Code – Section D3.8
• Australian/New Zealand Standard 1428.1 2009 – Design for access and mobility – Design for access and mobility: General requirements for access – New building works
Slip Resistance
All stair nosings have been tested in accordance with AS4586:2013 Appendix A
Test Method: Wet Pendulum
• Slip Resistance Value: 76
• Slip Resistance Classification: P5
Luminous Contrast
Luminous contrast testing was carried out in accordance with AS 1428.1-2009 Appendix B
Yellow
• LRV Dry: 39.53
• LRV: Wet: 35.04
-
PRODUCT INFORMATION

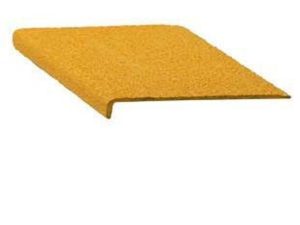

• SKU: GF-RMN1090
• Material: 1.6mm Galvanised Metal
• Customisable: 10mm x 90mm x 2400mm (lengths or cut to size)
• Colours available: Yellow
Slip Resistance
All stair nosing’s have been tested in accordance with AS4586:2013 Appendix A
Test Method: Wet Pendulum
• Slip Resistance Value: 76
• Slip Resistance Classification: P5
Luminous Contrast
Luminous contrast testing was carried out in accordance with AS 1428.1-2009 Appendix B
Yellow
• LRV Dry: 39.53
• LRV: Wet: 35.04
-
PRODUCT INFORMATION

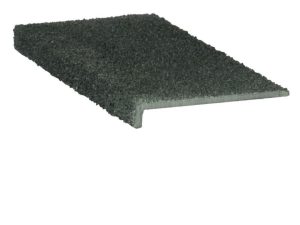

• SKU: GF-FGST10BLK
• Material: Heavy-duty fiberglass carborundum stair nosing
• Customisable: 10mm x 70mm x 3620mm (lengths or cut to size)
• Colours available: Black
Compliance and Industry Standards: Meets the requirements for The National Construction Code and AS1428.1:2009 Part 1
Luminance Contrast: The light reflectance value (LRV) of fibreglass stair nosing’s have been tested in accordance with AS1428.1-2009 Appendix B
Anti-Slip Safety
Slip Resistance: Achieved a slip resistance classification P5.
-
PRODUCT INFORMATION

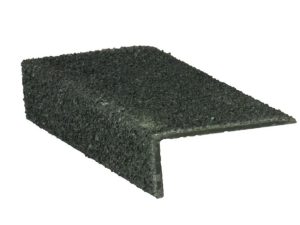

• SKU: GF-FGST30BLK
• Material: Heavy-duty fiberglass carborundum stair nosing
• Customisable: 30mm x 70mm x 3620mm (lengths or cut to size)
• Colours available: Black
Compliance
Industry Standards: Our Fibreglass stair nosing meets or exceeds the requirements of AS4586:2013
Luminance Contrast
As part of the NCC volume 1 stair nosing’s are required to have a 30% luminance contrast between the surface and the stair
nosing insert. The light reflectance value (LRV) of the fibreglass stair nosing’s have been tested in accordance with AS1428.1-2009 Appendix B and the results are as follows:
Insert Colour (Black)
Dry Conditions: 5.44
Wet Conditions: 3.90
Slip Resistance: Achieved a slip resistance classification of P5.
-
PRODUCT INFORMATION

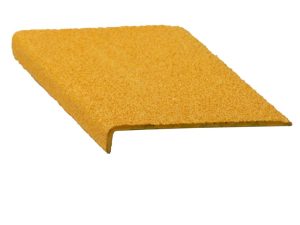

• SKU: GF-RMN1050
• Material: 1.6mm Galvanised Metal
• Customisable: 10mm x 50mm x 2400mm (lengths or cut to size)
• Colours available: Yellow
Compliance
National Construction Code – Section D3.8
Australian/New Zealand Standard 1428.1 2009 – Design for access and mobility – Design for access and mobility: General requirements for access – New building works
Slip Resistance
All stair nosings have been tested in accordance with AS4586:2013 Appendix A
Test Method: Wet Pendulum
• Slip Resistance Value: 76
• Slip Resistance Classification: P5
Luminous Contrast
Luminous contrast testing was carried out in accordance with AS 1428.1-2009 Appendix B
Yellow
• LRV Dry: 39.53
• LRV: Wet: 35.04
-
PRODUCT INFORMATION

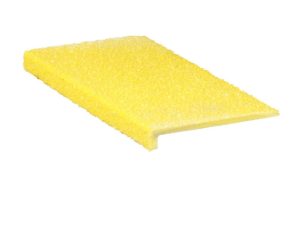

• SKU: GF-FGST10YEL
• Material: Heavy-duty fiberglass carborundum stair nosing
• Customisable: 10mm x 70mm x 3620mm (lengths or cut to size)
• Colours available: Yellow
Compliance and Anti-Slip Safety
• Industry Standards: Meets the requirements for The National Construction Code and AS1428.1:2009 Part 1
• Slip Resistance: Achieved a slip resistance classification P5
• Luminance Contrast: The light reflectance value (LRV) of fibreglass stair nosing’s have been tested in accordance with AS1428.1-2009 Appendix B
-
PRODUCT INFORMATION

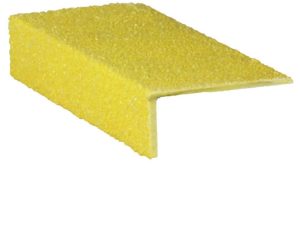

• SKU: GF-FGST30YEL
• Material: Heavy-duty fiberglass carborundum stair nosing
• Customisable: – 30mm x 70mm x 3620mm (lengths or cut to size)
• Colours available: Yellow
Compliance Industry Standards: Our Fibreglass stair nosing meets or exceeds the requirements of AS4586:2013
Luminance Contrast
As part of the NCC volume 1 stair nosing’s are required to have a 30% luminance contrast between the surface and the stair
nosing insert. The light reflectance value (LRV) of fibreglass stair nosing’s have been tested in accordance with AS1428.1-2009 Appendix B and the results are as follows:
Insert Colour: Yellow
Dry Conditions: 36.8
Wet Conditions: 29.02
Slip Resistance: Achieved a slip resistance classification of P5.
